Xtar VC4
PRODUCT DETAILS
Overview:

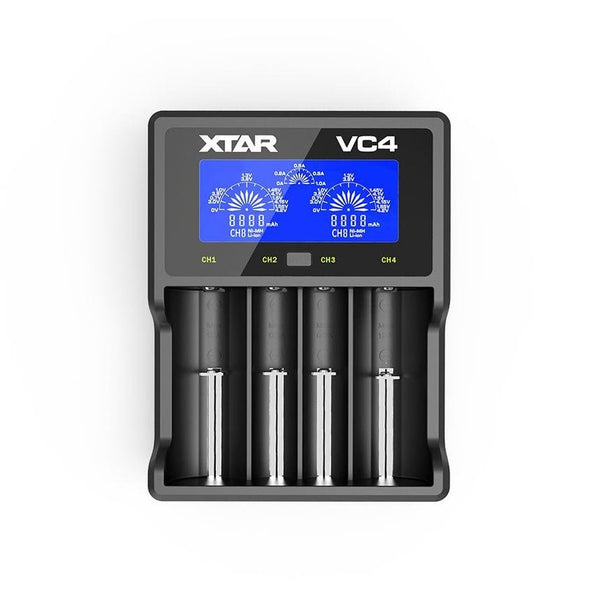

Xtar VC4 is a great and simple 4 bay charger. On the front of the charger there is a button that can be pressed once to show all four batteries' charging status or you can press and hold the button for 1.5s to turn off the backlight of the LCD screen. The Xtar VC4 shows the charging capacity of your batteries. You can also recharge the discharged batteries (at a discharged cut-off voltage) until the screen displays that they are FULL, which will then show you the actual capacity of the batteries.
The Xtar VC4 charger also has a current charging display and will automatically recognise and adjust the current from 0.1A to 1.0A.
The Xtar charger has a "null" and "Err" display which will show on the charger so that you don't waste time waiting for your batteries to charge and to also keep you safe if your batteries are faulty. If the "null" (after 10 minutes) shows, then this means it is a bad battery or Ni-MH battery can't be charged. If "Err" ( immediately) shows, this is when reverse polarity and short circuit happens.
You can decide which bay you put your batteries in depending on which current is best for your batteries. If you input batteries into bay one and four, your batteries will charge at 1.0A charging output, but if you use bay two and three, then your batteries will charge at 0.5A charging output. If you use all four charging bays then your batteries will charge at 0.5A charging output.
Battery Compatibility:
3.6V/3.7V Li-ion IMR/INR/ICR
10440/14500/14650/16340/17335/17500/17670/18350/18490/18500/18650/18700/20700/21700/22650/25500/32650.
Ni-MH / Ni-CD
AAAA/ AAA/ AA/ A/ SC/ C/ D
Cannot charge protected 20700/21700 batteries.
Box Contents:
Safety:
When you are using the Xtar VC4, make sure you never leave it in direct sunlight and make sure you don't leave it unattended overnight. You should always monitor the charger when in use.
Once your batteries are fully charged, they should be removed from the charger.
